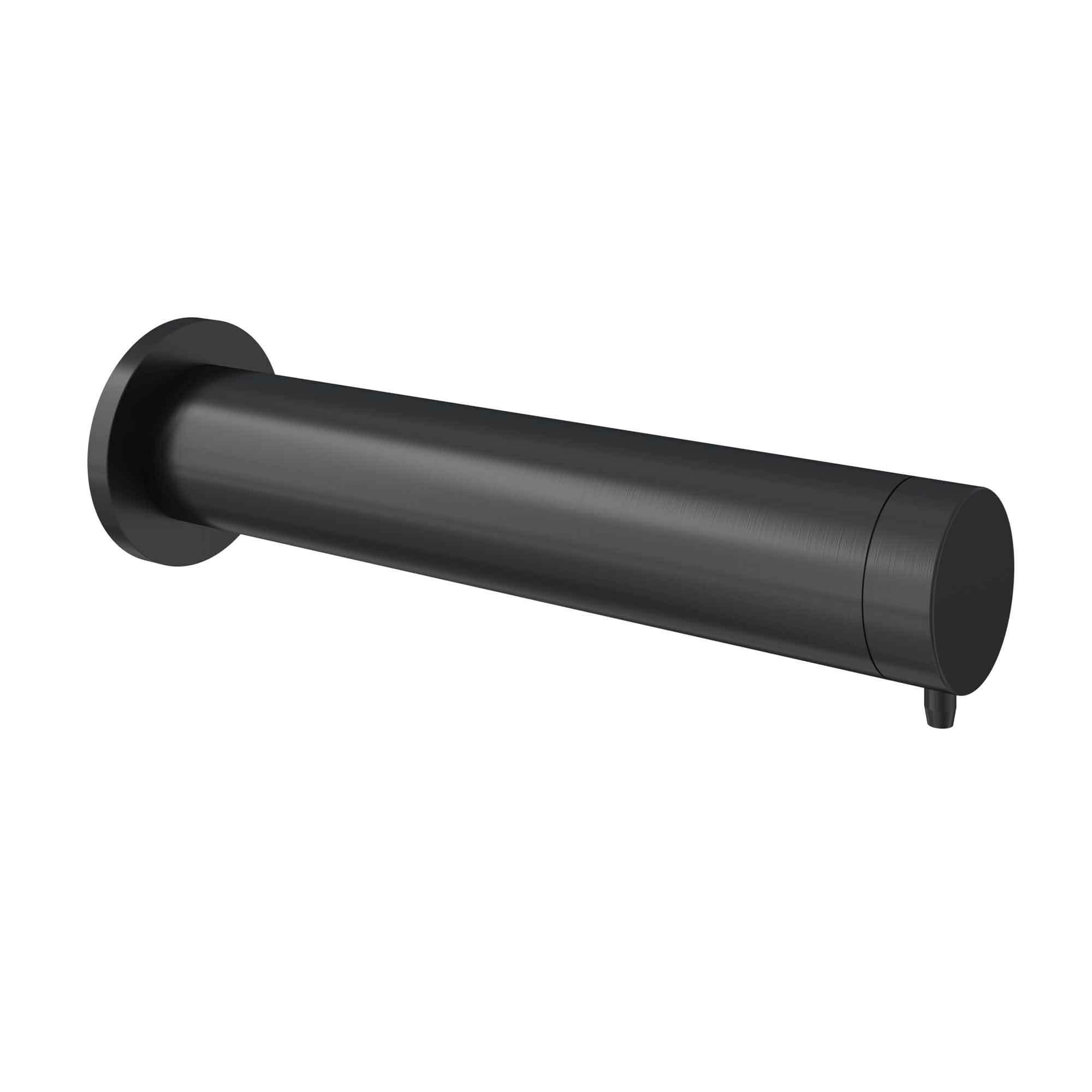

Panel Mounted Infrared Soap Dispenser

$696.00 Ex. GST

SKU: N/A Category:


Electronic foam soap dispenser activated by an infrared sensor. When the user places his hand within the sensor range, the soap dispenser delivers the foam soap.

A big improvement in soap dispensing foaming soap drastically reduces soap consumption when compared to standard liquid soap.

Integral peristaltic pump prevent backflow ensuring a germ free environment and, in conjunction with the touch free operation, eliminates the risks of contamination.

Soap and air settings can be adjusted to personalise soap ‘foamability’ via a remote control which easy to use and designed for the janitor or client to use (DB53). One of these is supplied FOC with every 6 dispensers or can be purchased separately.

Sensor settings (range etc) can be adjusted with a separate remote control – this is a more complex unit and designed more for maintenance staff to use (DB52).

Available in high quality polished chrome (BCL632FC) or brushed satin (BCL632FS-2) finishes on solid brass construction with other finishes available on request.

Panel mounted it includes a 1 litre foam soap bottle, integral bottle support and fixing kit.

Designed to match Dolphin Blue DB400 and DB1400 series taps.

Important: please contact Dolphin Technical Helpline 01424 202224 /consult fitting instructions for design guidance.

Power connections: soap dispenser: female / power source: male.

Draws maximum current of 0.5A at sensor activation.

2 year guarantee.

Powered by 12v Transformer; a 3pin version is supplied complete with each dispenser.

Additional information



Power Supply



, ,
